JAS Starter Motor For HOLDEN PANEL VAN KINGSWOOD HX 253 1976-1977 #SNB010
JAS Starter Motor For HOLDEN PANEL VAN KINGSWOOD HX 253 1976-1977 #SNB010
The starter motor cranks the engine on every start. Signs of failure include slow or labored cranking, intermittent no-starts, and a single click when you turn the key. Replace with a known-good unit before it strands you.
Vehicle fitment
- HOLDEN PANEL VAN KINGSWOOD HX 253 1976-1977
See the Vehicle Compatibility tab for the full year-by-year fitment list. We recommend confirming your vehicle's VIN and original part number before ordering.
Warranty: Standard manufacturer warranty applies. Please confirm fitment against your VIN before installation.
Zivor Automotive is an Australian-owned automotive parts supplier shipping nationwide from Moorabbin, Victoria. Free eParcel shipping with signature, dispatched same business day where possible.
| Specification Type | Specification Value |
|---|---|
| Volts (V) | 12 |
| Kilowatts (kW) | 1.7 |
| Overall Length (mm) | 240 |
| Mounting Hole Diameter (mm) | 11 |
| Mt Holes Cnt To Cnt (mm) | 83 |
| Flange Diameter (mm) | 82 |
| Pinion At Rest (mm) | 6 |

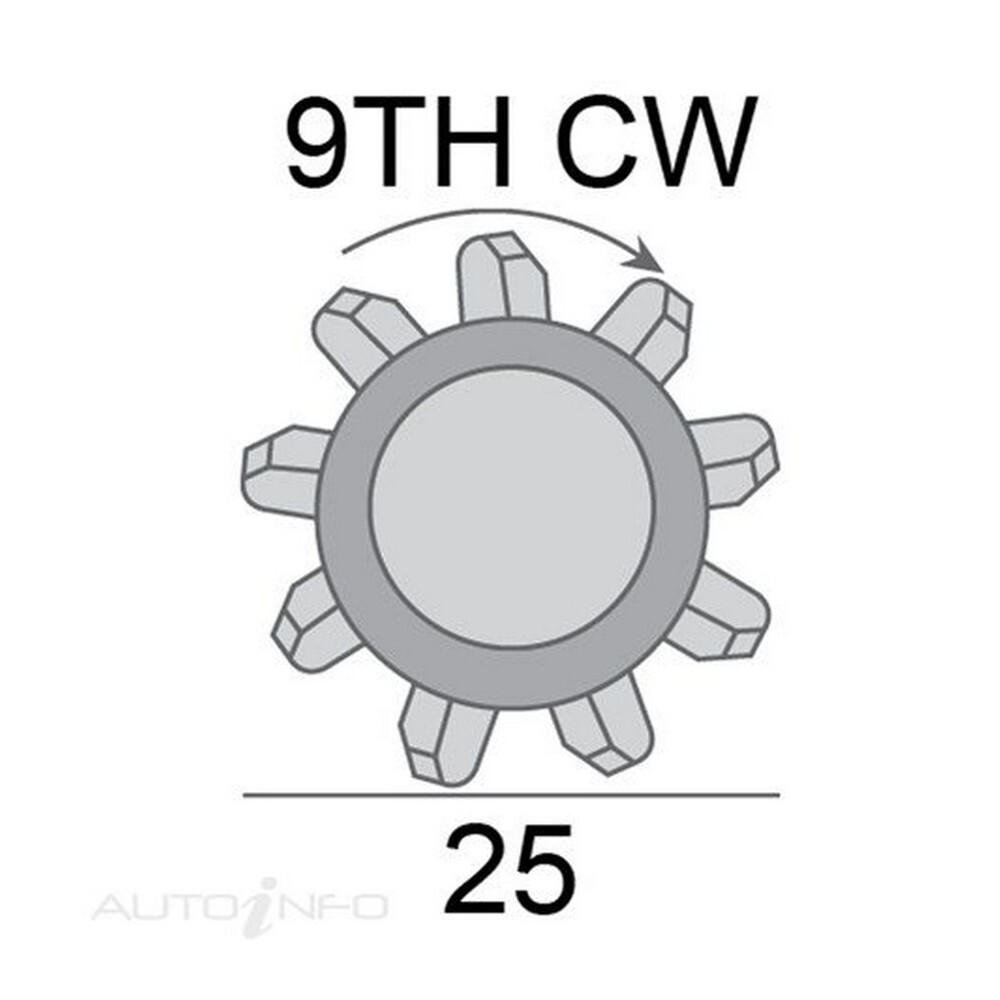

| Teeth & Dia | 9TH CW 25mm |
| Part No | SNB010 |
| Brand | JAS Oceania |
| Type | Starter Motor |
| Suitable for | HOLDEN |
| Shipping Weight | 3.9000kg |
⚠️ For reference only. Always confirm against your vehicle's VIN before purchase.
Note : The given information is only for reference purpose , Would request you to please contact prior purchase with Vehicle vin# & other details such as Make, Model, Sub-Model, Engine, Year Range.
The product images shown are for Display purposes only and may not be an exact representation of the product.
| Make | Model & Series | Year Range | Engine | Details |
|---|---|---|---|---|
| HOLDEN | PANEL VAN HJ | 1974-1976 | 4.1L 253 HC V8 16V OHV | 2D Van |
| HOLDEN | PANEL VAN HJ | 1974-1976 | 4.1L 253 LC V8 16V OHV | 2D Van |
| HOLDEN | PANEL VAN HJ | 1974-1976 | 5.0L 308 V8 16V OHV | 2D Van |
| HOLDEN | PANEL VAN HX | 1976-1977 | 4.1L 253 V8 16V OHV | 2D Van |
| HOLDEN | PANEL VAN HX | 1976-1977 | 5.0L 308 V8 16V OHV | 2D Van |
| HOLDEN | PANEL VAN HZ | 1977-1980 | 4.1L 253 V8 16V OHV | 2D Van |
| HOLDEN | PANEL VAN HZ | 1977-1980 | 5.0L 308 V8 16V OHV | 2D Van |
| HOLDEN | PANEL VAN WB | 1980-1985 | 4.1L 253 V8 16V OHV | 2D Van |
| HOLDEN | PANEL VAN BELMONT HG | 1970-1971 | 4.1L 253 HC V8 16V OHV | 2D Van |
| HOLDEN | PANEL VAN BELMONT HG | 1970-1971 | 4.1L 253 LC V8 16V OHV | 2D Van |
| HOLDEN | PANEL VAN BELMONT HG | 1970-1971 | 5.0L 308 V8 16V OHV | 2D Van |
| HOLDEN | PANEL VAN BELMONT HQ | 1971-1974 | 4.1L 253 HC V8 16V OHV | 2D Van |
| HOLDEN | PANEL VAN BELMONT HQ | 1971-1974 | 4.1L 253 LC V8 16V OHV | 2D Van |
| HOLDEN | PANEL VAN BELMONT HQ | 1971-1974 | 5.0L 308 V8 16V OHV | 2D Van |
| HOLDEN | PANEL VAN BELMONT HT | 1969-1970 | 4.1L 253 HC V8 16V OHV | 2D Van |
| HOLDEN | PANEL VAN BELMONT HT | 1969-1970 | 4.1L 253 LC V8 16V OHV | 2D Van |
| HOLDEN | PANEL VAN BELMONT HT | 1969-1970 | 5.0L 308 V8 16V OHV | 2D Van |
| HOLDEN | PANEL VAN KINGSWOOD HX | 1976-1977 | 4.1L 253 V8 16V OHV | 2D Van |
| HOLDEN | PANEL VAN KINGSWOOD HX | 1976-1977 | 5.0L 308 V8 16V OHV | 2D Van |
| HOLDEN | PANEL VAN KINGSWOOD HZ | 1977-1980 | 4.1L 253 V8 16V OHV | 2D Van |
| HOLDEN | PANEL VAN KINGSWOOD HZ | 1977-1980 | 5.0L 308 V8 16V OHV | 2D Van |
