MPN: 100ARM

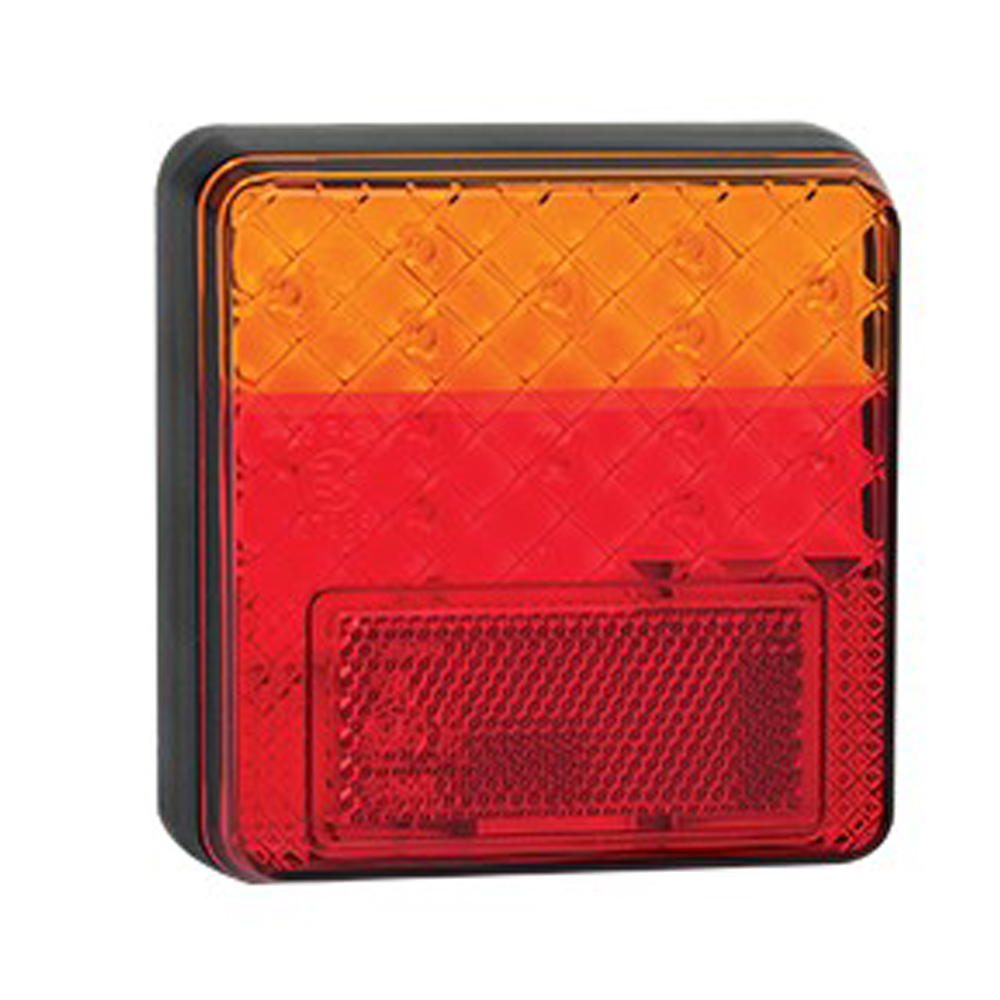

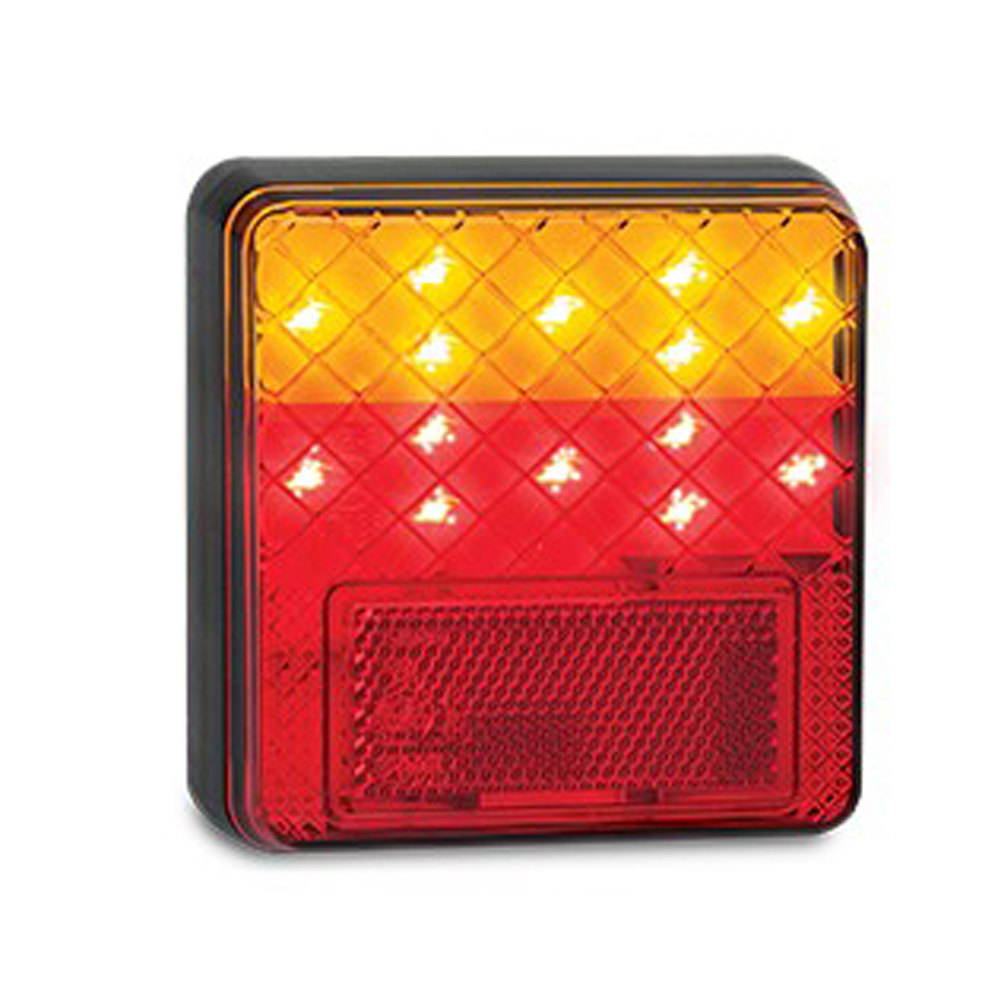

LED AUTOLAMPS Single Blister Multi Volt Stop/ Tail/Indicator Trailer Lamp 100ARM

$84.76
RRP $123.32
SAVE $38.56 (31%)
In Stock


Calculate Shipping



Australia Post - Express Post + Signature - $9.99 (ETA: 3 days)

Australia Post - eParcel + Signature - $0.00 (ETA: 6 days)

Description

100 Series

Features / Specifications

  • Premium Trailer Lamp
  • Diamond Pattern Lens
  • Low Profile
  • ADR Approved
  • IP67 100% Water proof
  • Voltage Range 12V or 12-24V
  • Lifetime Warranty

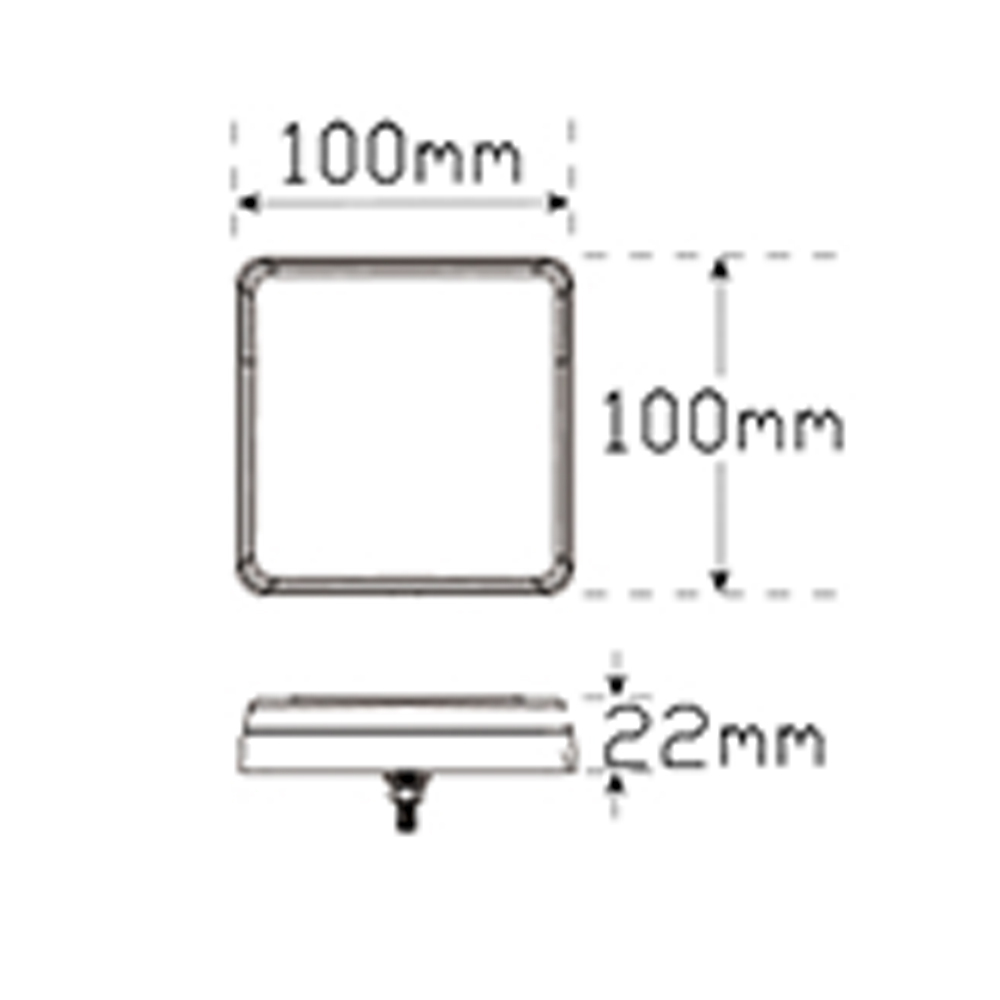

  • 100mm x 100mm x 22mm

Fitting Instructions

Surface mount onto flat surface vertically with Indicator at top using bolts in back of lamp, run wire and plug through 10mm hole in fixing surface. Please refer to ADR 13/00 for mounting instructions.



SPECIFICATION

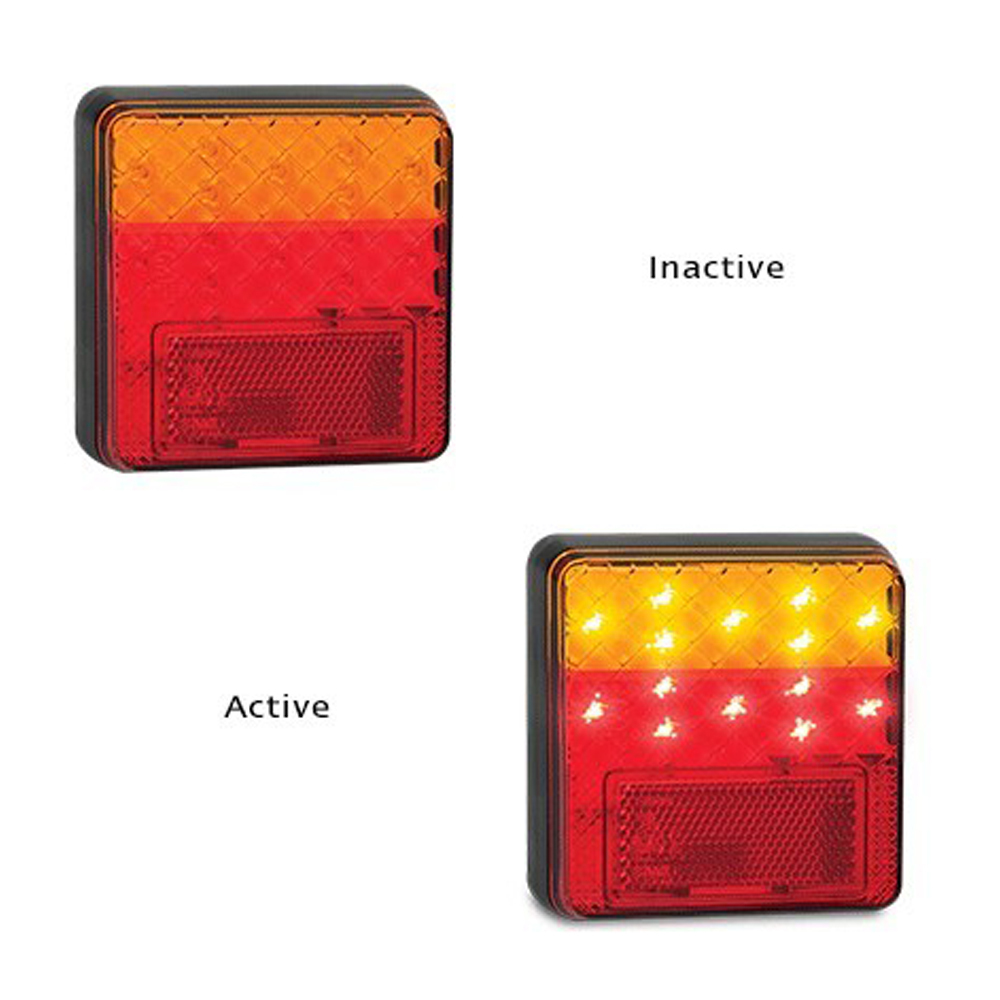

Function Stop/Tail/Indicator & Reflector
Part No. 100ARM
Type 12-24 Volt Single Blister
LED Qty 14
Cable 40cm with Plug
Draw Stop Tail Ind
@13.8V  0.13A  0.04A  0.12A
@28V 0.12A 0.06A 0.07A
Approvals Function Category CRN
ADR Stop/Tail 49/00 37986
ADR Indicator 6/00 2a 37985
ADR Reflector 47/00 38102
CTA (BAR) Stop/Tail/Indicator/Reflector 49/00, 6/00 2a, 47/00 CTA-060142
CTA (ARM) Stop/Tail/Indicator/Reflector 49/00, 6/00 2a, 47/00 CTA-060109

Features

Vehicle Compatibility

Specifications

Part No 100ARM
Brand LED AUTOLAMPS
Type Stop / Tail / Indicator / Reverse
Shipping Weight 0.1900kg
