New Genuine DAYCO Top-quality Fan Clutch #115499
DAYCO Top-quality Fan Clutch #115499

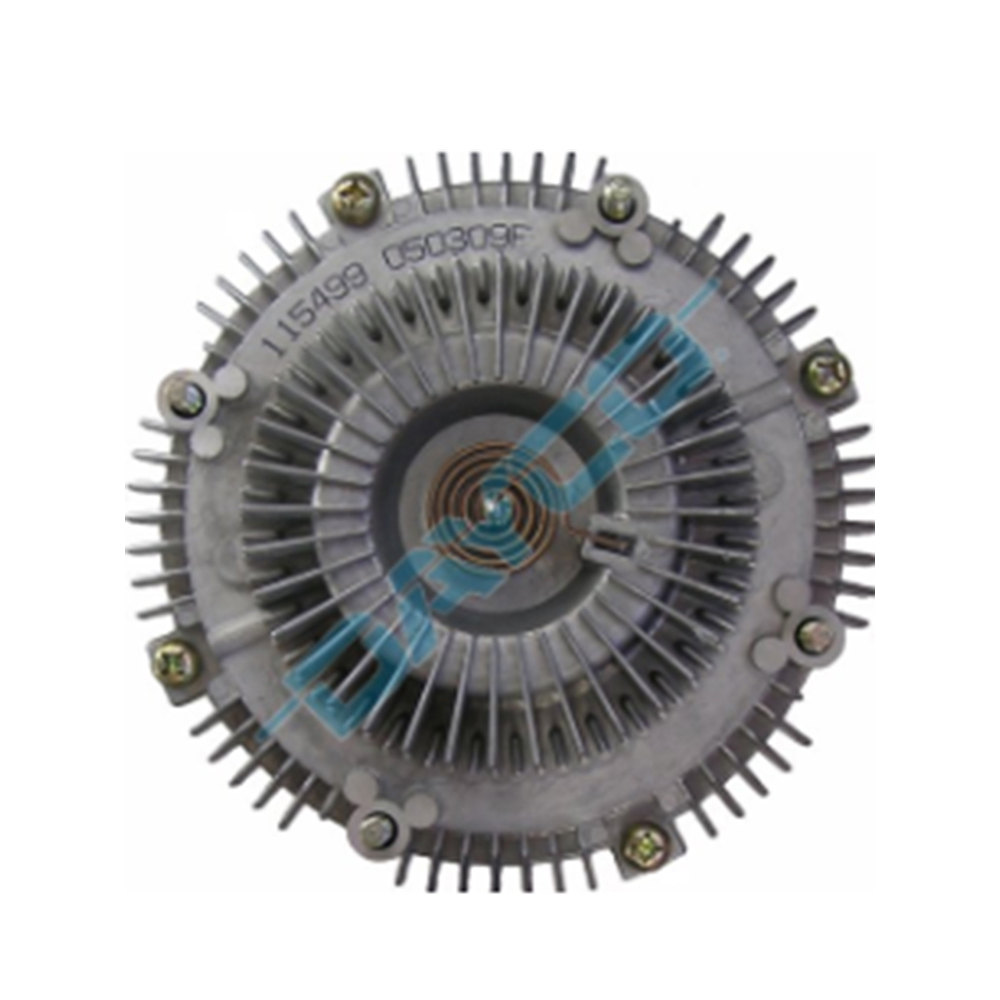

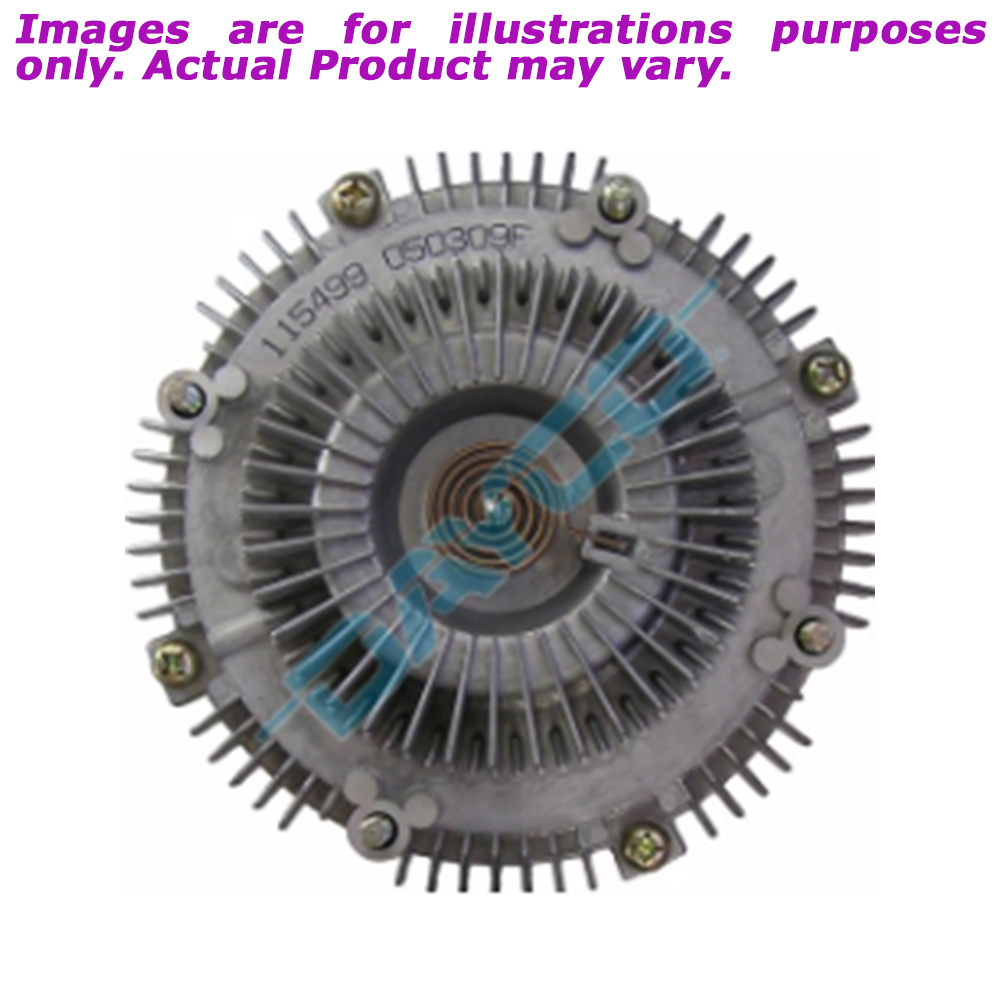

The fan clutch is what tells your engine fan when to spin hard and when to coast. Inside is a temperature-sensitive silicone fluid that engages and disengages the fan based on radiator airflow temperature. When the clutch fails you typically see one of two symptoms — the fan spins all the time (loud, fuel-wasting) or never engages (overheating in slow traffic and on inclines).
Why DAYCO
- One of the world's largest engine cooling, drive and timing systems manufacturers.
- Direct OE-equivalent specification, designed for long service life.
- Workshop-trusted across Australia for diesel utes, 4WDs and passenger vehicles.
Warranty: Standard manufacturer warranty applies. Please confirm fitment against your VIN before installation.
Zivor Automotive is an Australian-owned automotive parts supplier shipping nationwide from Moorabbin, Victoria. Free eParcel shipping with signature, dispatched same business day where possible.
| Specification Type | Specification Value |
|---|---|
| Part No. | 115499 |
| Type | FAN CLUTCH |
| Brand | DAYCO |
| Unit of Measure | EACH |
| Description | Dayco Fan Clutch |
| Warranty | Two Years |
| Item Type | Fan Clutch |
| Product Group 1 | COOLING |
| Product Group 2 | FANS & CLUTCHES |
Features:-
Die-cast aluminium and machined body provide a tight fit within close tolerances, while producing precision performance
Deep fins for heat dissipation, with drive spines are knurled and burnished
Top-quality bearings ensure quiet and smooth running
Special silicone fluid inhibits heat build-up to prolong service life
A bi-metal thermostatic spring adjusts the fan speed in response to operating temperature requirements - reducing fuel consumption.
Nationwide Manufacturer Warranty
| Part No | 115499 |
| Brand | DAYCO |
| Type | Fan Clutch |
| Shipping Weight | 2.1000kg |
⚠️ For reference only. Always confirm against your vehicle's VIN before purchase.
| Make | Model & Series | Year Range | Engine | Details | Comments |
|---|---|---|---|---|---|
| TOYOTA | COASTER HB30R | 01/87 - 01/90 | 4.0L 2H OHV 12v Diesel Direct Inj. | 6cyl 5sp Man Bus 4x2 | |
| TOYOTA | COASTER HZB30R | 01/91 - 01/93 | 4.2L 1HZ SOHC 12v Diesel Inj. | 6cyl 5sp Man Bus 4x2 | |
| TOYOTA | COASTER HZB50R | 01/93 - 01/02 | 4.2L 1HZ SOHC 12v Diesel Inj. | 6cyl 5sp Man Bus 4x2 | |
| TOYOTA | LANDCRUISER BUNDERA PZJ70R | 08/89 - 07/92 | 3.5L 1PZ SOHC 10v Diesel Inj. | 5cyl 72kW 5sp Man 2dr Wagon & Softop 4WD | |
| TOYOTA | LANDCRUISER HDJ100R | 08/00 - 07/02 | 4.2L 1HD-FTE SOHC 24v Turbo Diesel Inj. | 6cyl 4sp Auto 4dr Wagon 4WD | With 34.4mm Shaft Length |
| TOYOTA | LANDCRUISER HDJ100R | 08/02 - 07/07 | 4.2L 1HD-FTE SOHC 24v Turbo Diesel Inj. | 6cyl 5sp Auto 4dr Wagon 4WD | With 34.4mm Shaft Length |
| TOYOTA | LANDCRUISER HDJ100R | 08/00 - 07/07 | 4.2L 1HD-FTE SOHC 24v Turbo Diesel Inj. | 6cyl 5sp Man 4dr Wagon 4WD | With 34.4mm Shaft Length |
| TOYOTA | LANDCRUISER HDJ78R | 08/99 - 07/07 | 4.2L 1HD-FTE SOHC 24v Turbo Diesel Inj. | 6cyl 5sp Man 3dr Troopcarrier 4WD | |
| TOYOTA | LANDCRUISER HDJ79R | 08/99 - 07/07 | 4.2L 1HD-FTE SOHC 24v Turbo Diesel Inj. | 6cyl 5sp Man 2dr Cab Chassis & Pickup 4WD | |
| TOYOTA | LANDCRUISER HDJ80R | 08/94 - 07/99 | 4.2L 1HD-FT SOHC 24v Turbo Diesel Inj. | 6cyl 4sp Auto 4dr Wagon 4WD | |
| TOYOTA | LANDCRUISER HDJ80R | 08/94 - 07/99 | 4.2L 1HD-FT SOHC 24v Turbo Diesel Inj. | 6cyl 5sp Man 4dr Wagon 4WD | |
| TOYOTA | LANDCRUISER HDJ80R | 08/90 - 07/94 | 4.2L 1HD-T SOHC 12v Turbo Diesel Inj. | 6cyl 4sp Auto 4dr Wagon 4WD | |
| TOYOTA | LANDCRUISER HDJ80R | 08/90 - 07/94 | 4.2L 1HD-T SOHC 12v Turbo Diesel Inj. | 6cyl 5sp Man 4dr Wagon 4WD | |
| TOYOTA | LANDCRUISER HZJ105R | 01/98 - 07/02 | 4.2L 1HZ SOHC 12v Diesel Inj. | 6cyl 4sp Auto 4dr Wagon 4WD | TO 05/99 |
| TOYOTA | LANDCRUISER HZJ105R | 01/98 - 07/07 | 4.2L 1HZ SOHC 12v Diesel Inj. | 6cyl 5sp Man 4dr Wagon 4WD | TO 05/99 |
| TOYOTA | LANDCRUISER HZJ73R | 01/90 - 07/91 | 4.2L 1HZ SOHC 12v Diesel Inj. | 6cyl 5sp Man 2dr Wagon & Softop 4WD | |
| TOYOTA | LANDCRUISER HZJ75R | 01/90 - 07/99 | 4.2L 1HZ SOHC 12v Diesel Inj. | 6cyl 5sp Man 2dr Cab Chassis & Pickup 4WD | |
| TOYOTA | LANDCRUISER HZJ75R | 01/90 - 07/99 | 4.2L 1HZ SOHC 12v Diesel Inj. | 6cyl 5sp Man 2dr Wagon & Softop 4WD | |
| TOYOTA | LANDCRUISER HZJ75R | 01/90 - 07/99 | 4.2L 1HZ SOHC 12v Diesel Inj. | 6cyl 5sp Man 3dr Troopcarrier 4WD | |
| TOYOTA | LANDCRUISER HZJ78R | 08/99 - 12/06 | 4.2L 1HZ SOHC 12v Diesel Inj. | 6cyl 5sp Man 3dr Troopcarrier 4WD | |
| TOYOTA | LANDCRUISER HZJ79R | 08/99 - 12/06 | 4.2L 1HZ SOHC 12v Diesel Inj. | 6cyl 5sp Man 2dr Cab Chassis & Pickup 4WD | |
| TOYOTA | LANDCRUISER HZJ80R | 01/90 - 12/97 | 4.2L 1HZ SOHC 12v Diesel Inj. | 6cyl 5sp Man 4dr Wagon 4WD | |
| TOYOTA | LANDCRUISER PZJ73R | 08/89 - 07/92 | 3.5L 1PZ SOHC 10v Diesel Inj. | 5cyl 72kW 5sp Man 2dr Wagon & Softop 4WD |
