MPN: 63198BL

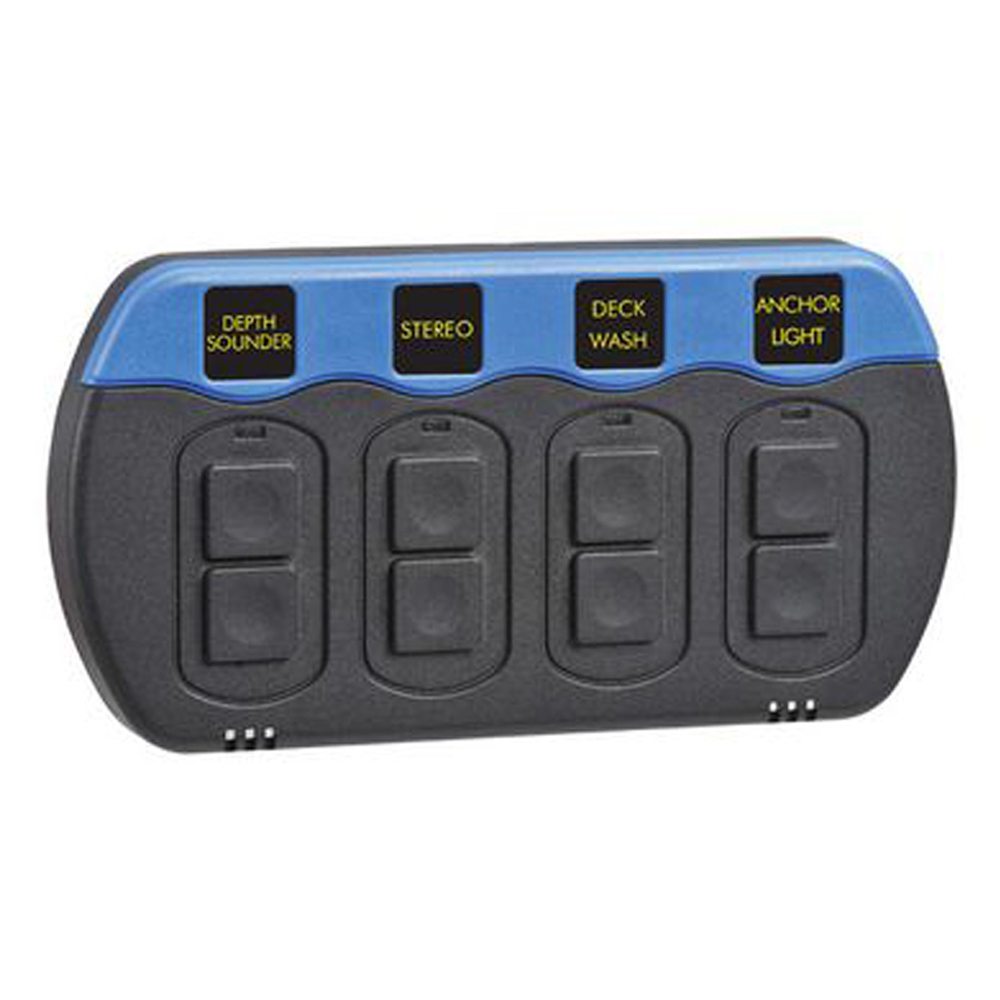

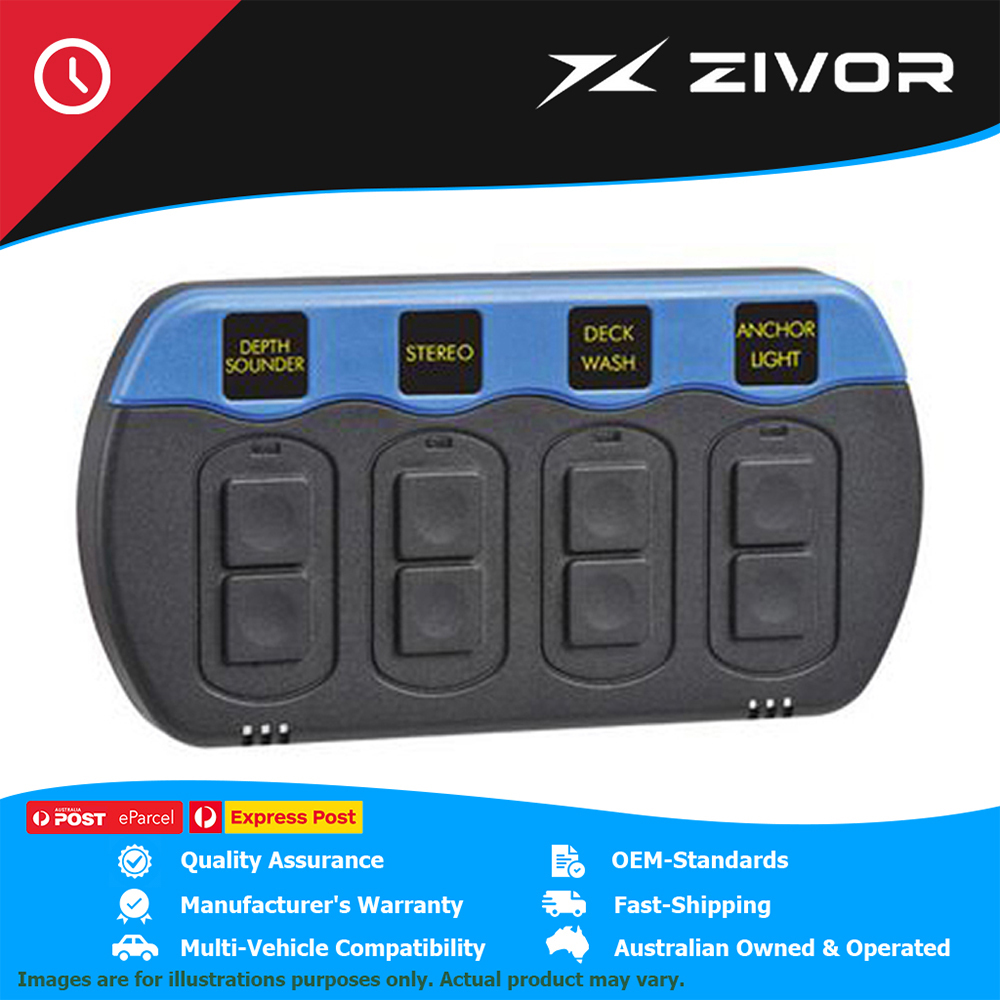

New Genuine NARVA Marine Waterproof On - Off - SPST Switch Panel #63198BL

$73.38
RRP $102.41
SAVE $29.03 (28%)
In Stock


Calculate Shipping



Australia Post - Express Post + Signature - $14.99 (ETA: 3 days)

Australia Post - eParcel + Signature - $0.00 (ETA: 6 days)

Description



Specification TypeSpecification Value
Part No.63198BL
TypeSWITCH MOUNT/ PANEL
BrandNARVA
Unit of MeasureEACH
DescriptionNarva Marine Waterproof Switch Panel
WarrantyOne Year
Mount Width40mm
Power Rating (Amp)10A max per circuit/15A max (two circuit)
Switch ActionOn - Off - SPST
Voltage12-24V DC
Mount Length86mm
NoteRated IP66
Item TypeSwitch Panel
Product Group 1AUTO ELEC ACCESSORIES
Product Group 2FUSES BREAKERS RELAYS SWITCHES



Features:-

• Replaceable clip-on contour wave cover (available in blue & grey)

• LED back lit labels

• Ideal for boats where switches need to be protected from the elements

• Rated IP66

• Rating: 12-24V DC

• Output rating: 10A max (per circuit)/ 15A max (two circuit)

• Switch function: 2P SPST on/off x 4

• Mounting hole: 86 x 40mm

• Minimum recommended mounting depth: 55-60mm to allow for cable

• Operating temperature: -25 degreesC - +60 degreesC

Features

Vehicle Compatibility

Specifications

Part No 63198BL
Brand NARVA
Type Switch Mount Panel
Shipping Weight 0.2000kg
