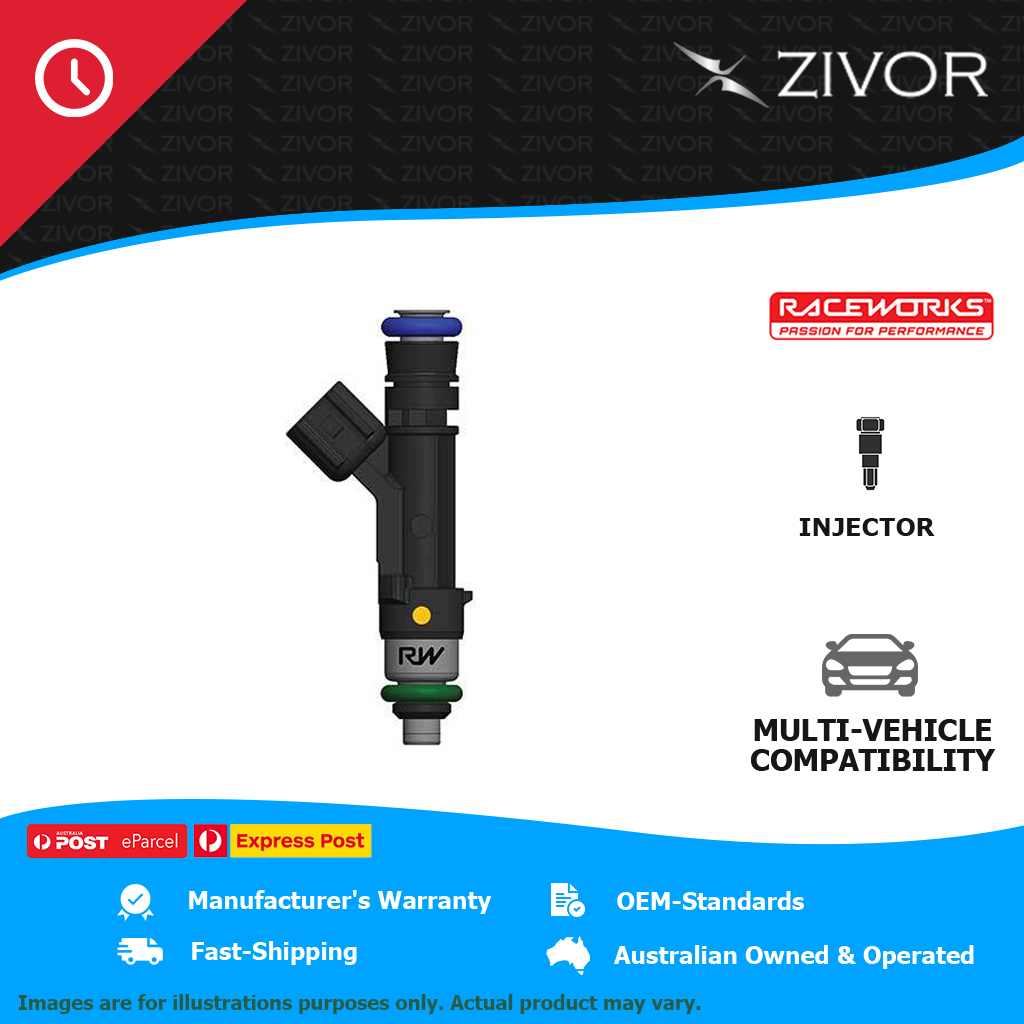

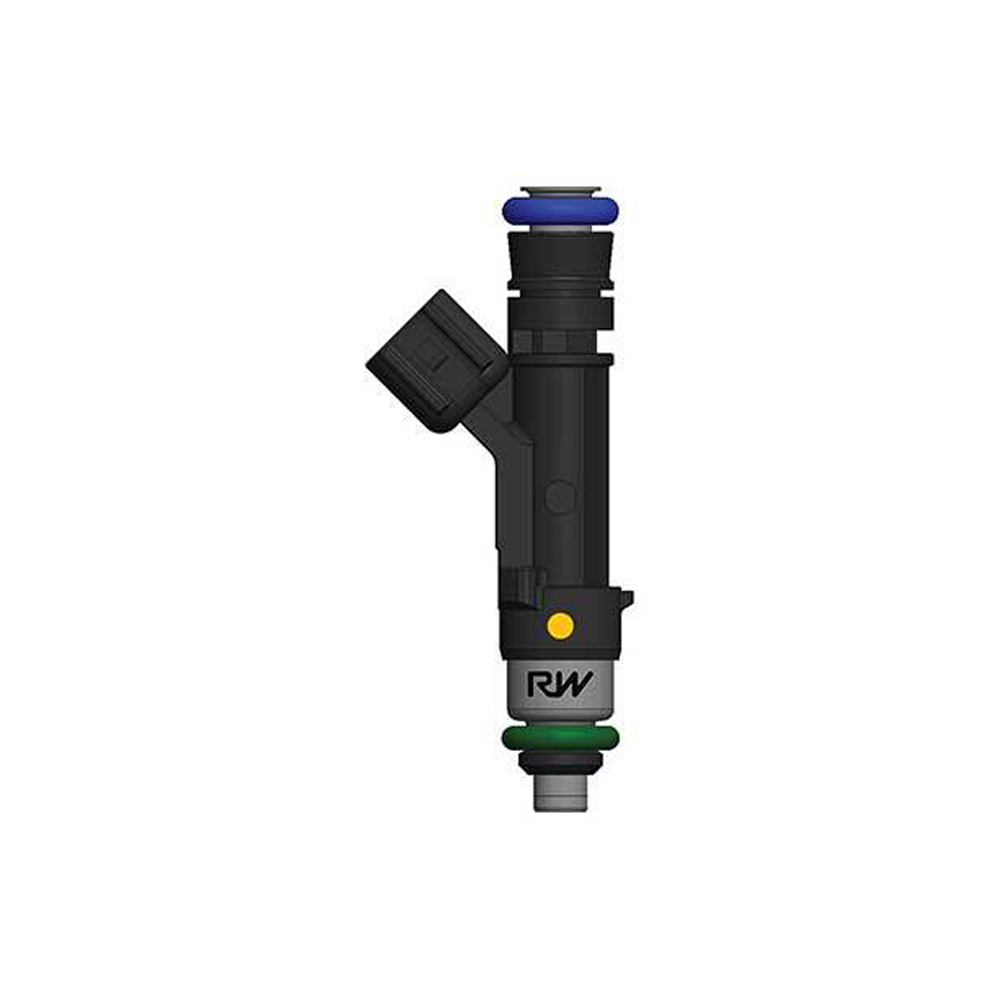

New RACEWORKS Single 980cc Full Length Fuel Injector 14mm 2 Yrs Warranty INJ-505
Description
Raceworks is a range of High Performance Air, Fuel, and Fluid Management Components.
Raceworks products are manufactured from premium quality materials to ensure the highest specifications and industry standards are surpassed.
Raceworks components include fuel pumps, silicone hoses, fuel rails, aluminium fittings, performance hose, fuel injectors, sensors, connectors and supporting hardware.
Raceworks is available through a network of specialised resellers and leading automotive retail groups who have a passion for performance.
Raceworks have developed a comprehensive range of performance fuel injectors, that now set the industry standard for quality and reliability, with a variety of flow rates, physical sizes and fuel compatibility ranging from pump fuel to E85 and Methanol. A full range of connector plug adaptors and extensions are also availalbe, enabling a quick and simple upgrade to almost any application. All Raceworks injectors are High Impedence with 14mm Viton O-Rings.
Features:
- Modified/High Flowed Bosch Injector
- Size: 980cc (95 Lb/hr) @ 3bar and 1150cc (110Lb/hr) @ 4bar.
- Impedance: High (12Ohms)
- Plug: USCAR. Top O-Ring: 14mm.
- Ethanol & Methanol Safe
- Spray Pattern: Narrow Cone
- Spray Direction: Straight
- Sold flow matched to a +/- 1% Variance (2% Total)
Flywheel power figures per injector (Estimated):
Normally Aspirated Gasoline | 185HP | 140KW |
Forced Inducted Low Boost Gasoline | 155HP | 115KW |
Forced Inducted High Boost Gasoline | 165HP | 125KW |
Normally Aspirated E85 | 140HP | 105KW |
Forced Inducted Low Boost E85 | 110HP | 80KW |
Forced Inducted High Boost E85 | 120HP | 90KW |
Direct fit applications*:
- Ford Falcon AU V8
- Ford Falcon BA/BF 24V V8
- Ford Falcon FG-X Supercharged V8
- Ford Focus LR/LS/LT/LV Duratec I4
- Ford Mustang V8
- Mazda MX5 NC
*Injectors are a direct fit physically, but as with all Raceworks Injectors, will require a tune. While the vehicles listed above are direct fit, the injector can be used in many other applications with the appropriate extensions, o-rings or plug adapters.
Product Specification:-
SKU | INJ-505 |
Brand | RACEWORKS |
Shipping Weight | 5.0000kg |
Shipping Width | 0.360m |
Shipping Height | 0.200m |
Shipping Length | 0.300m |
Features
Product Specification:-
SKU | INJ-505 |
Brand | RACEWORKS |
Shipping Weight | 5.0000kg |
Shipping Width | 0.360m |
Shipping Height | 0.200m |
Shipping Length | 0.300m |
Vehicle Compatibility
Specifications
Part No | INJ-505 |
Brand | RACEWORKS |
Type | Injectors, Extensions & Connectors |
Suitable for | FORD,FPV,MAZDA |
Shipping Weight | 0.1000kg |
