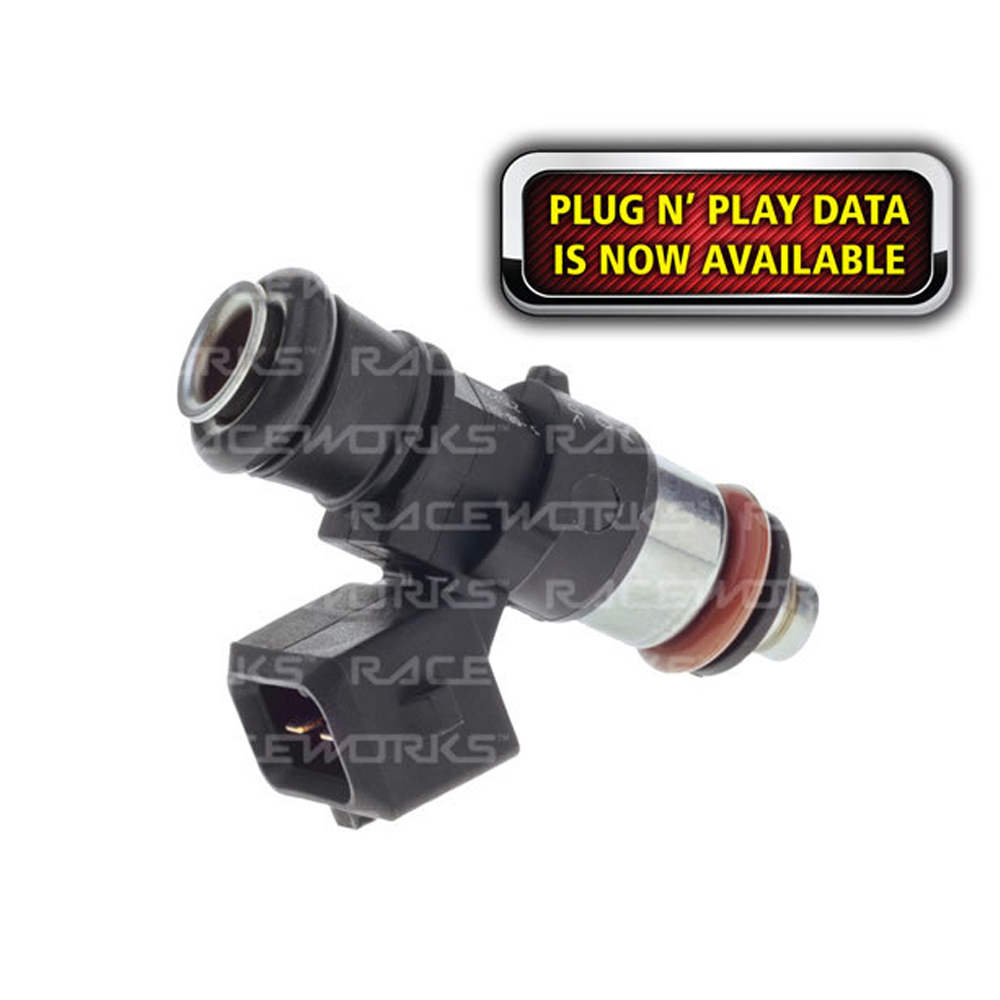

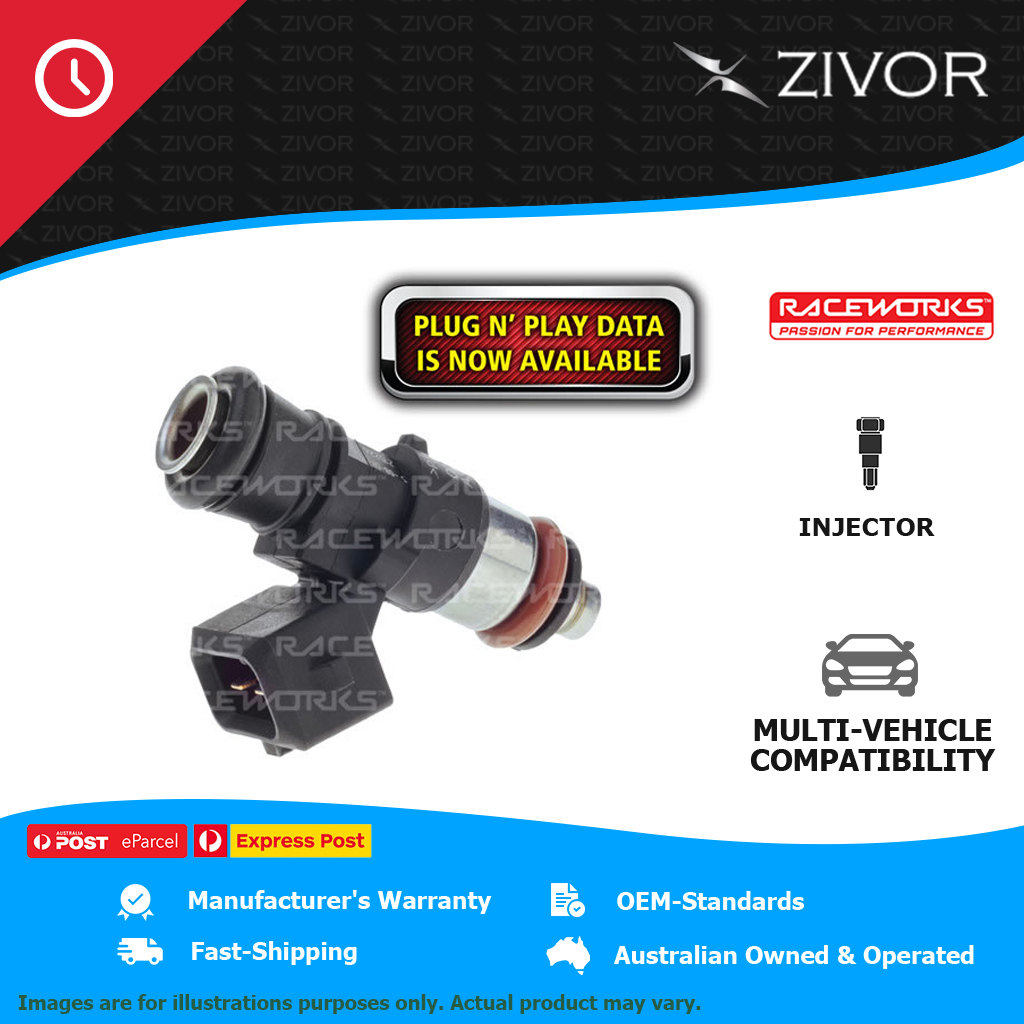

New RACEWORKS Single Bosch Motorsport 1500cc Short Injector 14mm INJ-223
Description
Raceworks is a range of High Performance Air, Fuel, and Fluid Management Components.
Raceworks products are manufactured from premium quality materials to ensure the highest specifications and industry standards are surpassed.
Raceworks components include fuel pumps, silicone hoses, fuel rails, aluminium fittings, performance hose, fuel injectors, sensors, connectors and supporting hardware.
Raceworks is available through a network of specialised resellers and leading automotive retail groups who have a passion for performance.
Raceworks have developed a comprehensive range of performance fuel injectors, that now set the industry standard for quality and reliability, with a variety of flow rates, physical sizes and fuel compatibility ranging from pump fuel to E85 and Methanol. A full range of connector plug adaptors and extensions are also availalbe, enabling a quick and simple upgrade to almost any application. All Raceworks injectors are High Impedence with 14mm Viton O-Rings.
Features:
- Size: 1500cc (143 lb/hr) and 1650cc (157Lb/hr) @ 4bar
- Impedance: High (8.4Ohms)
- Plug: Bosch Jetronic/Minitimer, Top O-Ring: 14mm
- E85 Safe
- Spray Pattern: Pencil
- Spray Direction: Straight
- Sold in matched sets with a 1% (2% Total) Flow Variance
Flywheel power figures per injector (Estimated):
Normally Aspirated Gasoline | 250HP | 190KW |
Forced Inducted Low Boost Gasoline | 210HP | 160KW |
Forced Inducted High Boost Gasoline | 230HP | 170KW |
Normally Aspirated E85 | 140HP | 100KW |
Forced Inducted Low Boost E85 | 150HP | 110KW |
Forced Inducted High Boost E85 | 165HP | 120KW |
Direct fit applications*:
- Holden Commodore VZ 6.0L V8
- Holden Commodore VE L76/L77/L98/LS3
- Holden Commodore VE LS7
- Holden Commodore VF V8
*Injectors are a direct fit physically, but as with all Raceworks Injectors, will require a tune. While the vehicles listed above are direct fit, the injector can be used in many other applications with the appropriate extensions, o-rings or plug adapters.
Product Specification:-
SKU | INJ-223 |
Brand | RACEWORKS |
Shipping Weight | 5.0000kg |
Shipping Width | 0.360m |
Shipping Height | 0.200m |
Shipping Length | 0.300m |
Features
Product Specification:-
SKU | INJ-223 |
Brand | RACEWORKS |
Shipping Weight | 5.0000kg |
Shipping Width | 0.360m |
Shipping Height | 0.200m |
Shipping Length | 0.300m |
Vehicle Compatibility
Specifications
Part No | INJ-223 |
Brand | RACEWORKS |
Type | Injectors, Extensions & Connectors |
Suitable for | BMW,FORD,HOLDEN |
Shipping Weight | 0.1000kg |
