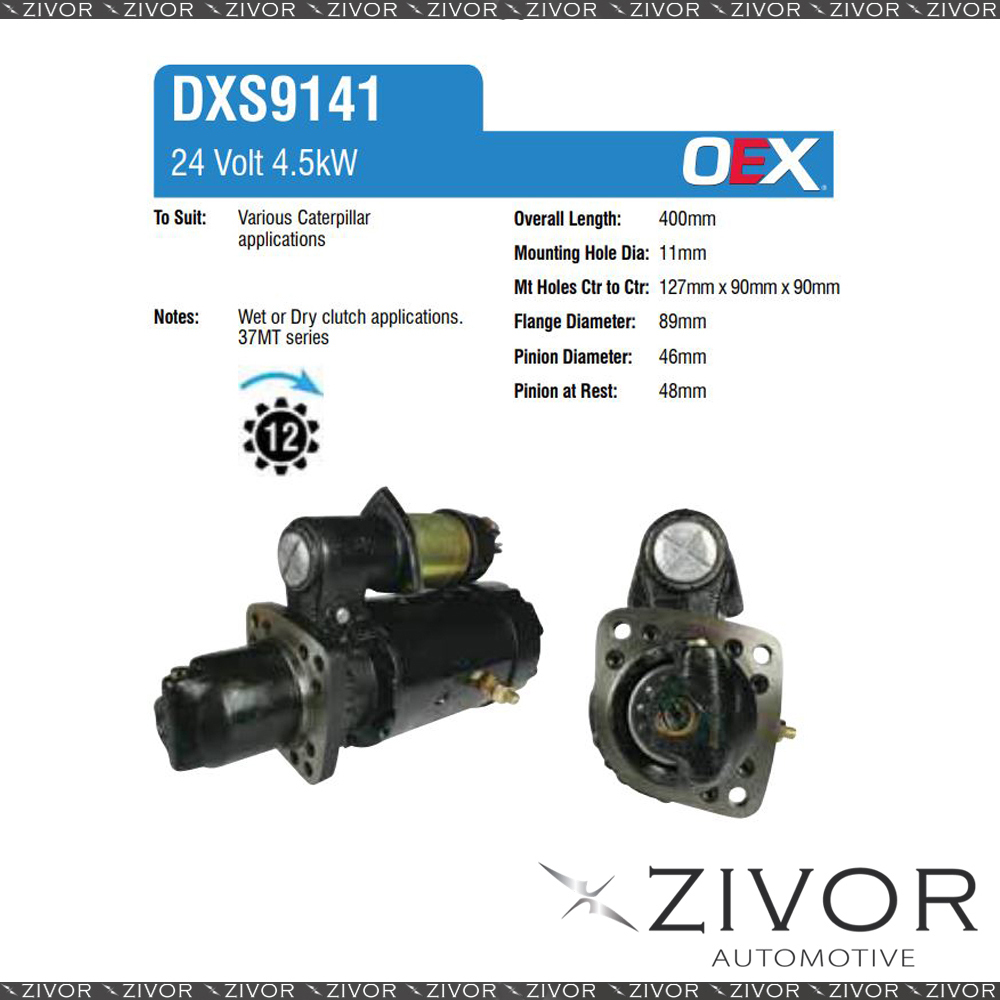

OEX Starter Motor 24V 12Th CW Delco 37MT Style For CATERPILLAR Challenger 55
Description
Features
Product Specification:-
| Part No. | DXS9141 |
| Type | STARTER MOTOR |
| Brand | OEX |
| Unit of Measure | EACH |
| Description | STR 24V 12TH CW DELCO 37MT STYLE |
| Warranty | 3yr Passenger 1yr Commercial |
| Flange Diameter | 89mm |
| Mount Centres A | 127mm |
| Mount Centres B | 90mm |
| Mount Centres C | 90mm |
| Mount Hole Diameter | 11 |
| Number of Teeth | 12 |
| Overall Length | 400mm |
| Pinion at Rest | 48mm |
| Pinion Diameter | 46mm |
| Power Rating | 4.5kW |
| Rotation | CW |
| Series | 37MT |
| Suits Unit Make | Delco |
| Voltage | 24 |
| Note | 37MT. Length may vary. |
| Weight | 22.997kg |
| Item Type | Starter Motor |
| New / Reman. | New |
| Starter Mount Type | 3 Hole |
| Wet / Dry Clutch | Wet or Dry |
| Product Group 1 | ROTATING ELECTRICAL |
| Product Group 2 | STARTER MOTORS |
Features:-
• Quality replacement starter motors and alternators, OEX for the Australian automotive aftermarket.
• OEX stands for Original Equipment Xchange, a brand that initially produced Japanese starter motors and alternators.
• OEX Starter motors and alternators is supported with a three year or 75,000 kilometre warranty on all new units
• 2 year, 50,000 kilometre warranty on all re-manufactured units when used in passenger vehicle applications.
• OEX represents premium quality at competitive price
Vehicle Compatibility
Note : The given information is only for reference purpose , Would request you to please contact prior purchase with Vehicle vin# & other details such as Make, Model, Sub-Model, Engine, Year Range.
The product images shown are for Display purposes only and may not be an exact representation of the product.
ATLAS COPCO ROC D7-RRC 7.2L 3126B Turbo Diesel Direct Inj. 6cyl Drill [01/02 - 12/18]
CATERPILLAR 120H 6.6L 3116T Turbo Diesel Direct Inj. 6cyl Grader [01/97 - 12/07]
CATERPILLAR 120H 7.2L 3126 Turbo Diesel Direct Inj. 6cyl Man Grader 4x4 [01/97 ON]
CATERPILLAR 120K 7.2L C7 OHV 12v Turbo Diesel Direct Inj. 6cyl Grader [01/10 - 12/10]
CATERPILLAR 12K 7.2L C7 OHV 12v Turbo Diesel Direct Inj. 6cyl Grader [01/03 ON]
CATERPILLAR 12M 7.2L C7 OHV 12v Turbo Diesel Direct Inj. 6cyl Man Grader 4x4 [01/13 ON]
CATERPILLAR 135H 7.2L 3126 Turbo Diesel Direct Inj. 6cyl Grader [01/03 - 12/03]
CATERPILLAR 140H 10.3L 3176C Turbo Diesel Direct Inj. 6cyl Grader [01/96 - 12/07]
CATERPILLAR 140K 7.2L C7 OHV 12v Turbo Diesel Direct Inj. 6cyl Grader [01/10 - 12/11]
CATERPILLAR 140M 7.2L C7 OHV 12v Turbo Diesel Direct Inj. 6cyl Grader [01/07 ON]
CATERPILLAR 14H 10.3L 3176E Diesel Direct Inj. 6cyl Grader [01/98 - 12/07]
CATERPILLAR 160K 7.2L C7 OHV 12v Turbo Diesel Direct Inj. 6cyl Grader [01/10 - 12/10]
CATERPILLAR 163H 10.3L 3176C Turbo Diesel Direct Inj. 6cyl Grader [01/08 - 12/10]
CATERPILLAR 320 6.6L 3116 Diesel Inj. 6cyl Excavator [01/93 ON]
CATERPILLAR 320B 6.6L 3116 Diesel Inj. 6cyl Excavator [01/93 ON]
CATERPILLAR 320BL 6.6L 3116 Diesel Inj. 6cyl Excavator [01/93 ON]
CATERPILLAR 320L 6.6L 3116 Diesel Inj. 6cyl Excavator [01/93 ON]
CATERPILLAR 320N 6.6L 3116 Diesel Inj. 6cyl Excavator [01/93 ON]
CATERPILLAR 322 6.6L 3116 Diesel Inj. 6cyl Excavator Tracks [01/94 - 12/02]
CATERPILLAR 322B/BL 6.6L 3116T Turbo Diesel Direct Inj. 6cyl Excavator [01/97 ON]
CATERPILLAR 322C/ CLN 7.2L 3126B Turbo Diesel Direct Inj. 6cyl Excavator [01/02 ON]
CATERPILLAR 322L 6.6L 3116 Diesel Inj. 6cyl Excavator [01/95 - 12/97]
CATERPILLAR 324 7.2L C7 OHV 12v Turbo Diesel Direct Inj. 6cyl Excavator [01/06 - 12/08]
CATERPILLAR 324DL 7.2L C7 OHV 12v Turbo Diesel Direct Inj. 6cyl Excavator [01/06 ON]
CATERPILLAR 325C 7.2L 3126 Turbo Diesel Direct Inj. 6cyl Excavator Tracks [01/04 - 12/05]
CATERPILLAR 325DL 7.2L 3126B Turbo Diesel Direct Inj. 6cyl Excavator [01/06 ON]
CATERPILLAR 329 7.2L C7 OHV 12v Turbo Diesel Direct Inj. 6cyl Excavator [01/09 ON]
CATERPILLAR 329DL 7.2L C7 OHV 12v Turbo Diesel Direct Inj. 6cyl Excavator [01/09 ON]
CATERPILLAR 330 10.5L 3306 OHV 12v Turbo Diesel Direct Inj. 6cyl Excavator Tracks [01/93 - 12/08]
CATERPILLAR 330B 10.5L 3306 OHV 12v Turbo Diesel Direct Inj. 6cyl Excavator [01/95 ON]
CATERPILLAR 613CII 6.6L 3116T Turbo Diesel Direct Inj. 6cyl Scraper [01/96 - 12/07]
CATERPILLAR 928F 6.6L 3116T Turbo Diesel Direct Inj. 6cyl Wheel Loader [01/95 - 12/97]
CATERPILLAR 928G 6.6L 3116T Turbo Diesel Direct Inj. 6cyl Wheel Loader [01/97 - 12/08]
CATERPILLAR 938F 6.6L 3116T Turbo Diesel Direct Inj. 6cyl Wheel Loader [01/96 - 12/05]
CATERPILLAR 938G 7.2L 3126 Turbo Diesel Direct Inj. 6cyl Wheel Loader [01/97 - 12/08]
CATERPILLAR 938GII 7.2L 3126 Turbo Diesel Direct Inj. 6cyl Wheel Loader [01/03 - 12/08]
CATERPILLAR 950F 6.6L 3116T Turbo Diesel Direct Inj. 6cyl Wheel Loader [01/95 - 12/97]
CATERPILLAR 950G 7.2L 3126 Turbo Diesel Direct Inj. 6cyl Wheel Loader [01/98 - 12/07]
CATERPILLAR 950GII 7.2L 3126 Turbo Diesel Direct Inj. 6cyl Wheel Loader [01/04 - 12/07]
CATERPILLAR 950H 7.2L C7 OHV 12v Turbo Diesel Direct Inj. 6cyl Wheel Loader 4x4 [01/06 ON]
CATERPILLAR 950K 7.0L C7.1 ACERT Turbo Diesel Direct Inj. 6cyl Wheel Loader [01/13 ON]
CATERPILLAR 953B 6.6L 3116 Diesel Inj. 6cyl Loader Tracks [01/93 - 12/97]
CATERPILLAR 953C 7.2L 3126 Turbo Diesel Direct Inj. 6cyl Loader Tracks [01/97 - 12/09]
CATERPILLAR 960F 6.6L 3116T Turbo Diesel Direct Inj. 6cyl Wheel Loader [01/95 - 12/00]
CATERPILLAR 962G 7.2L 3126 Turbo Diesel Direct Inj. 6cyl Wheel Loader [01/98 - 12/08]
CATERPILLAR 962GII 7.2L 3126 Turbo Diesel Direct Inj. 6cyl Wheel Loader [01/05 - 12/07]
CATERPILLAR 962H 7.2L C7 OHV 12v Turbo Diesel Direct Inj. 6cyl Loader 4x4 [01/06 ON]
CATERPILLAR 962K 7.0L C7.1 ACERT Turbo Diesel Direct Inj. 6cyl Loader 4x4 [01/12 ON]
CATERPILLAR AGRICULTURAL 324D FM 7.2L C7 OHV 12v Turbo Diesel Direct Inj. 6cyl Forestry Machine [01/14 ON]
CATERPILLAR AGRICULTURAL 325D FM 7.2L C7 OHV 12v Turbo Diesel Direct Inj. 6cyl Forestry Machine [01/14 ON]
CATERPILLAR AGRICULTURAL 535B 7.2L 3126B Turbo Diesel Direct Inj. 6cyl Log Skidder [01/01 ON]
CATERPILLAR AGRICULTURAL 584HD 7.2L C7 OHV 12v Turbo Diesel Direct Inj. 6cyl Forestry Forwarder [01/14 ON]
CATERPILLAR AGRICULTURAL CHALLENGER 55 7.2L C7 OHV 12v Turbo Diesel Direct Inj. 6cyl Tractor Tracks [01/86 ON]
CATERPILLAR AGRICULTURAL CHALLENGER 75 10.3L 3176C Turbo Diesel Direct Inj. 6cyl Tractor Tracks [01/91 - 12/92]
CATERPILLAR AGRICULTURAL CHALLENGER 75C 10.3L 3176C Turbo Diesel Direct Inj. 6cyl Tractor Tracks [01/93 - 12/95]
CATERPILLAR AGRICULTURAL CHALLENGER 75D 10.3L 3176C Turbo Diesel Direct Inj. 6cyl Tractor Tracks [01/95 - 12/97]
CATERPILLAR AGRICULTURAL LEXION 460 7.2L 3126 Turbo Diesel Direct Inj. 6cyl Header [01/01 ON]
CATERPILLAR AGRICULTURAL LEXION 480 10.3L 3176C Turbo Diesel Direct Inj. 6cyl Header [01/01 ON]
CATERPILLAR AP1000D 7.2L C7 OHV 12v Turbo Diesel Direct Inj. 6cyl Paver [01/08 - 12/09]
CATERPILLAR CP563D 6.6L 3116T Turbo Diesel Direct Inj. 6cyl Road Roller [01/02 - 12/07]
CATERPILLAR CS-563C 6.6L 3116 Diesel Inj. 6cyl Compactor [01/92 ON]
CATERPILLAR CS563D 6.6L 3116T Turbo Diesel Direct Inj. 6cyl Road Roller [01/02 - 12/07]
CATERPILLAR CS573D 6.6L 3116T Turbo Diesel Direct Inj. 6cyl Road Roller [01/03 - 12/03]
CATERPILLAR CS583D 6.6L 3116T Turbo Diesel Direct Inj. 6cyl Road Roller [01/00 - 12/07]
CATERPILLAR D5M 6.6L 3116T Turbo Diesel Direct Inj. 6cyl Dozer [01/97 - 12/07]
CATERPILLAR D5N 7.2L 3126 Turbo Diesel Direct Inj. 6cyl Dozer [01/04 - 12/07]
CATERPILLAR D5NLGP 7.2L 3126 Turbo Diesel Direct Inj. 6cyl Dozer [01/03 - 12/07]
CATERPILLAR D5NXL 7.2L 3126 Turbo Diesel Direct Inj. 6cyl Dozer [01/03 - 12/07]
CATERPILLAR D6M 6.6L 3116T Turbo Diesel Direct Inj. 6cyl Dozer [01/97 - 12/07]
CATERPILLAR D6N 6.6L C6.6 OHV 12v Turbo Diesel Direct Inj. 6cyl Dozer [01/06 ON]
CATERPILLAR D6N 7.0L C7.1 ACERT Turbo Diesel Direct Inj. 6cyl Dozer [01/15 ON]
CATERPILLAR D6TTT 7.2L 3126 Turbo Diesel Direct Inj. 6cyl Dozer [01/06 ON]
CATERPILLAR E200B 6.6L 3116T Turbo Diesel Direct Inj. 6cyl Excavator [01/90 - 12/91]
CATERPILLAR EL200B 6.6L 3116T Turbo Diesel Direct Inj. 6cyl Excavator [01/89 - 12/93]
CATERPILLAR EL240B 6.6L 3116 Diesel Inj. 6cyl Excavator [01/89 - 01/93]
CATERPILLAR ENGINE 3116T 6.6L 3116T Turbo Diesel Direct Inj. 6cyl Engine [01/91 ON]
CATERPILLAR ENGINE 3126 7.2L 3126 Turbo Diesel Direct Inj. 6cyl Engine [01/99 ON]
CATERPILLAR ENGINE C7 7.2L C7 OHV 12v Turbo Diesel Direct Inj. 6cyl Engine [01/03 ON]
CATERPILLAR IT28 6.6L 3116T Turbo Diesel Direct Inj. 6cyl Tool Carrier [01/91 ON]
CATERPILLAR IT28F 6.6L 3116T Turbo Diesel Direct Inj. 6cyl Tool Carrier [01/95 - 12/97]
CATERPILLAR IT28G 6.6L 3116T Turbo Diesel Direct Inj. 6cyl Tool Carrier [01/97 - 12/05]
CATERPILLAR IT38F 6.6L 3116T Turbo Diesel Direct Inj. 6cyl Tool Carrier [01/97 - 12/99]
CATERPILLAR IT38GII 7.2L 3126 Turbo Diesel Direct Inj. 6cyl Tool Carrier [01/04 - 12/07]
CATERPILLAR IT62G 7.2L 3126 Turbo Diesel Direct Inj. 6cyl Tool Carrier [01/00 ON]
CATERPILLAR IT62G 7.2L 3126B Turbo Diesel Direct Inj. 6cyl Tool Carrier [01/00 ON]
CATERPILLAR IT62GII 7.2L 3126 Turbo Diesel Direct Inj. 6cyl Tool Carrier [01/04 - 12/07]
CATERPILLAR IT62H 7.2L C7 OHV 12v Turbo Diesel Direct Inj. 6cyl Tool Carrier [01/06 ON]
CATERPILLAR M325CMH 7.2L 3126B Turbo Diesel Direct Inj. 6cyl Wheel Excavator [01/02 ON]
CATERPILLAR PM102 7.0L C7.1 ACERT Turbo Diesel Direct Inj. 6cyl Cold Milling Machine [01/07 ON]
CATERPILLAR R1600G 10.3L 3176C Turbo Diesel Direct Inj. 6cyl Underground Loader [01/00 ON]
CATERPILLAR R1700G 10.3L 3176C Turbo Diesel Direct Inj. 6cyl Underground Loader [01/09 ON]
Specifications
| Part No | DXS9141 |
| Brand | OEX |
| Type | Starter Motor |
| Suitable for | CATERPILLAR |
| Shipping Weight | 4.0000kg |
