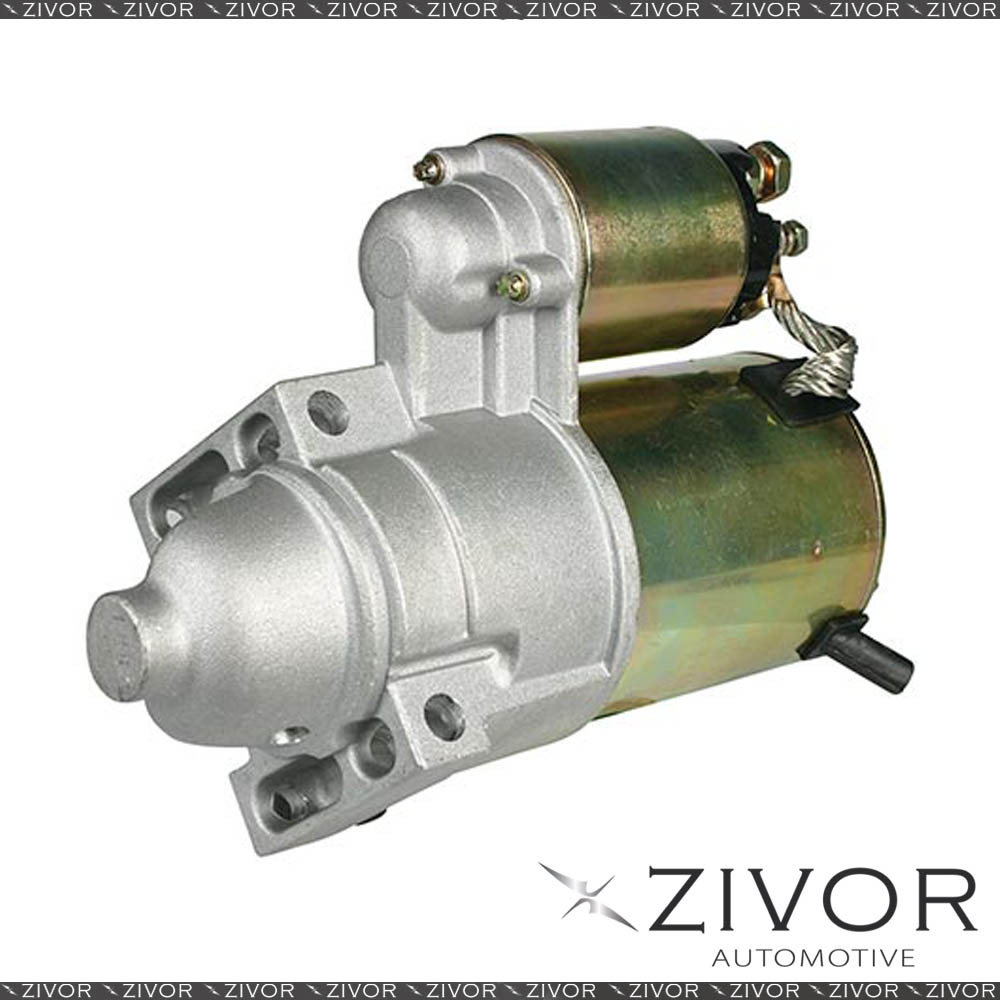

OEX Starter Motor For Kohler Stationary Engine .6l Ch20/22 Command. #DXS554
Description
Features
Product Specification:-
| Part No. | DXS554 |
| Type | STARTER MOTOR |
| Brand | OEX |
| Unit of Measure | EACH |
| Description | STR 12V 10TH CCW DENSO STYLE |
| Warranty | 3yr Passenger 1yr Commercial |
| Flange Diameter | 63mm |
| Mount Centres A | 68mm |
| Mount Hole Diameter | 8.5 |
| Number of Teeth | 10 |
| Overall Length | 206mm |
| Pinion at Rest | 9mm |
| Pinion Diameter | 30mm |
| Power Rating | .8kW |
| Rotation | CCW |
| Suits Unit Make | Denso |
| Voltage | 12 |
| Weight | 4.1kg |
| Item Type | Starter Motor |
| New / Reman. | New |
| Starter Mount Type | Pad |
| Wet / Dry Clutch | Dry |
| Product Group 1 | ROTATING ELECTRICAL |
| Product Group 2 | STARTER MOTORS |
Features:-
• Quality replacement starter motors and alternators, OEX for the Australian automotive aftermarket.
• OEX stands for Original Equipment Xchange, a brand that initially produced Japanese starter motors and alternators.
• OEX Starter motors and alternators is supported with a three year or 75,000 kilometre warranty on all new units
• 2 year, 50,000 kilometre warranty on all re-manufactured units when used in passenger vehicle applications.
• OEX represents premium quality at competitive price
Vehicle Compatibility
Note : The given information is only for reference purpose , Would request you to please contact prior purchase with Vehicle vin# & other details such as Make, Model, Sub-Model, Engine, Year Range.
The product images shown are for Display purposes only and may not be an exact representation of the product.
AVANT 220 0.67L CV640 OHV Carb V2 Loader [01/15 ON]
BANDIT 2250XP 0.75L CH742 OHV Carb 2cyl Stump Grinder [01/14 ON]
BANDIT 2550R 0.75L CH742 OHV Carb 2cyl Stump Grinder [01/14 ON]
DINGO K9-P 0.75L ECH740 EFI OHV Petrol Direct Inj. V2 Skid Steer Loader [01/17 ON]
HERCULES MTL8 MIDGET 0.75L CH742 OHV Carb 2cyl All Terrain Loader [01/15 ON]
HERCULES MWL8 MIDGET 0.75L CH742 OHV Carb 2cyl Skid Steer Loader [01/15 ON]
JOHN DEERE GT225 0.4L CV15S 15HP Carb 1cyl Lawn Tractor [01/99 - 12/03]
JOHN DEERE LX255 0.4L CV15S 15HP Carb 1cyl Lawn Tractor [01/99 - 12/01]
JOHN DEERE STX30 0.4L CF12.5-1216S 9HP Carb 1cyl Lawn Tractor [01/88 - 12/93]
JOHN DEERE STX46 0.4L CV15S 15HP Carb 1cyl Lawn Tractor [01/95 ON]
KOHLER CH18 0.62L CH18 Carb 2cyl Engine [01/93 ON]
KOHLER CH20/22 0.62L CH20/22 Command OHV Carb V2 Engine [01/98 ON]
KOHLER CH25 0.73L CH25 COMMAND OHV Carb V2 Engine [01/93 ON]
KOHLER CH26 0.73L CH26 COMMAND PRO OHV 4v EFI V2 Engine [01/93 ON]
KOHLER CH730/740 0.73L CH730/740 COMMAND OHV 4v Carb V2 Engine [01/93 ON]
KUBOTA ZG20-48 0.62L CH20/22 Command OHV Carb V2 Ride On Mower [01/04 ON]
KUBOTA ZG23-54 0.67L CH23 COMMAND OHV Carb V2 Ride On Mower [01/04 ON]
TORO 66IN RAKE-O-VAC 0.62L CH20/22 Command OHV Carb V2 Sweeper [01/96 ON]
TORO DINGO 220 0.62L CH20/22 Command OHV Carb V2 Skid Steer Loader [01/07 - 12/07]
TORO DINGO 222 0.62L CH20/22 Command OHV Carb V2 Skid Steer Loader [01/99 ON]
TORO DINGO 322 0.62L CH20/22 Command OHV Carb V2 Skid Steer Loader [01/99 ON]
TORO DINGO 323 0.67L CH23 COMMAND OHV Carb V2 Skid Steer Loader [01/07 - 12/07]
TORO TX420 0.62L CH20/22 Command OHV Carb V2 Skid Steer Loader [01/07 - 12/07]
TORO TX425WT 0.73L CH25 COMMAND OHV Carb V2 Skid Steer Loader [01/07 - 12/07]
TORO TX427 0.73L CH730/740 COMMAND OHV 4v Carb V2 Compact Track Loader [01/17 ON]
TORO WHEELHORSE 518XI 0.62L CH18 Carb 2cyl Lawn Tractor [01/98 ON]
TORO WHEELHORSE 520XI/520XI EURO 0.62L CH20/22 Command OHV Carb V2 Lawn Tractor [01/98 ON]
TORO WHEELHORSE 522XI 0.62L CH20/22 Command OHV Carb V2 Lawn Tractor [01/98 ON]
TORO WORKMAN 3000 0.62L CH20/22 Command OHV Carb V2 Lawn Tractor [01/94 ON]
TORO WORKMAN 3100/3120 0.62L CH20/22 Command OHV Carb V2 Lawn Tractor [01/94 ON]
VERMEER BC600XL 0.73L CH26 COMMAND PRO OHV 4v EFI V2 Brush Chipper [01/10 ON]
VERMEER CTX50 0.75L ECH740 EFI OHV Petrol Direct Inj. V2 Compact Track Loader [01/16 ON]
VERMEER RTX200 0.67L CH640 COMMAND PRO OHV Carb V2 Trencher [01/16 ON]
VERMEER RTX250 0.75L ECH740 EFI OHV Petrol Direct Inj. V2 Trencher [01/16 ON]
VERMEER SC252 0.73L CH25 COMMAND OHV Carb V2 Stump Cutter [01/97 ON]
VERMEER SC30TX 0.73L CH730/740 COMMAND OHV 4v Carb V2 Stump Cutter [01/15 ON]
Specifications
| Part No | DXS554 |
| Brand | OEX |
| Type | Starter Motor |
| Suitable for | KOHLER |
| Shipping Weight | 4.0000kg |
