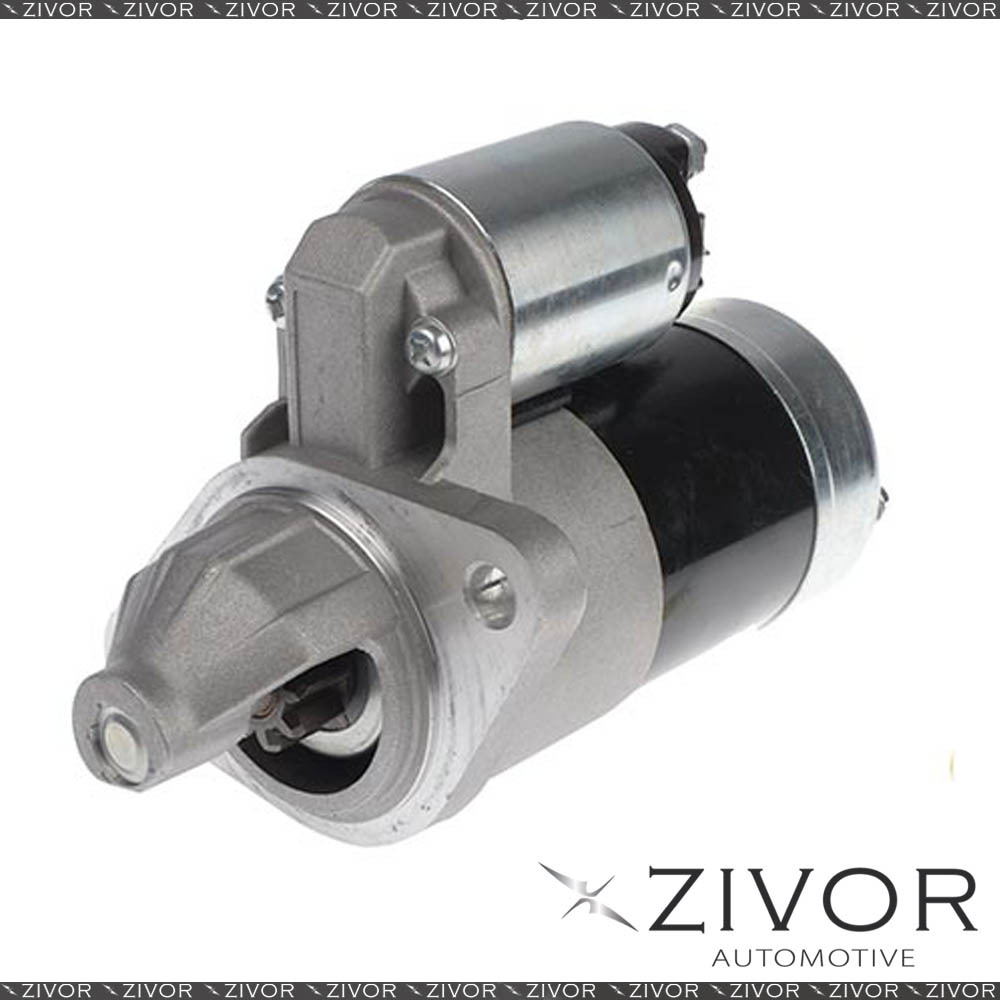

OEX Starter Motor For Yanmar .3l 1gm10 #HXS063
Description
Features
Product Specification:-
Part No. | HXS063 |
Type | STARTER MOTOR |
Brand | OEX |
Unit of Measure | EACH |
Description | STR 12V 9TH CW HITACHI STYLE |
Warranty | 3yr Passenger 1yr Commercial |
Flange Diameter | 70mm |
Mount Centres A | 110mm |
Mount Hole Diameter | 11 |
Nose Cone Length | 53mm |
Number of Teeth | 9 |
Overall Length | 218mm |
Pinion at Rest | 17mm |
Pinion Diameter | 29mm |
Power Rating | 1kW |
Rotation | CW |
Suits Unit Make | Hitachi |
Voltage | 12 |
Weight | 3.58kg |
Item Type | Starter Motor |
New / Reman. | New |
Starter Mount Type | 2 Hole |
Wet / Dry Clutch | Dry |
Product Group 1 | ROTATING ELECTRICAL |
Product Group 2 | STARTER MOTORS |
Features:-
• Quality replacement starter motors and alternators, OEX for the Australian automotive aftermarket.
• OEX stands for Original Equipment Xchange, a brand that initially produced Japanese starter motors and alternators.
• OEX Starter motors and alternators is supported with a three year or 75,000 kilometre warranty on all new units
• 2 year, 50,000 kilometre warranty on all re-manufactured units when used in passenger vehicle applications.
• OEX represents premium quality at competitive price
Vehicle Compatibility
Note : The given information is only for reference purpose , Would request you to please contact prior purchase with Vehicle vin# & other details such as Make, Model, Sub-Model, Engine, Year Range.
The product images shown are for Display purposes only and may not be an exact representation of the product.
YANMAR INBOARD MARINE ENGINE 0.32L 1GM Diesel Inj. 1cyl Inboard Marine Engine [01/80 ON]
YANMAR INBOARD MARINE ENGINE 0.32L 1GM10 Diesel Inj. 1cyl Inboard Marine Engine [01/80 ON]
YANMAR INBOARD MARINE ENGINE 0.32L 1GM10C Diesel Inj. 1cyl Inboard Marine Engine [01/80 ON]
YANMAR INBOARD MARINE ENGINE 0.32L 1GM10V Diesel Inj. 1cyl Inboard Marine Engine [01/80 ON]
YANMAR INBOARD MARINE ENGINE 0.64L 2GM Diesel Inj. 2cyl Inboard Marine Engine [01/80 ON]
YANMAR INBOARD MARINE ENGINE 0.64L 2GM20C Diesel Inj. 2cyl Inboard Marine Engine [01/80 ON]
YANMAR INBOARD MARINE ENGINE 0.64L 2GM20F Diesel Inj. 2cyl Inboard Marine Engine [01/80 ON]
YANMAR INBOARD MARINE ENGINE 0.64L 2GM20FV Diesel Inj. 2cyl Inboard Marine Engine [01/80 ON]
YANMAR INBOARD MARINE ENGINE 0.95L 3GM Diesel Inj. 3cyl Inboard Marine Engine [01/80 ON]
YANMAR INBOARD MARINE ENGINE 0.95L 3GM30C Diesel Inj. 3cyl Inboard Marine Engine [01/80 ON]
YANMAR INBOARD MARINE ENGINE 0.95L 3GM30F Diesel Inj. 3cyl Inboard Marine Engine [01/80 ON]
YANMAR INBOARD MARINE ENGINE 0.95L 3GM30FV Diesel Inj. 3cyl Inboard Marine Engine [01/80 ON]
Specifications
Part No | HXS063 |
Brand | OEX |
Type | Starter Motor |
Suitable for | YANMAR |
Shipping Weight | 4.0000kg |
